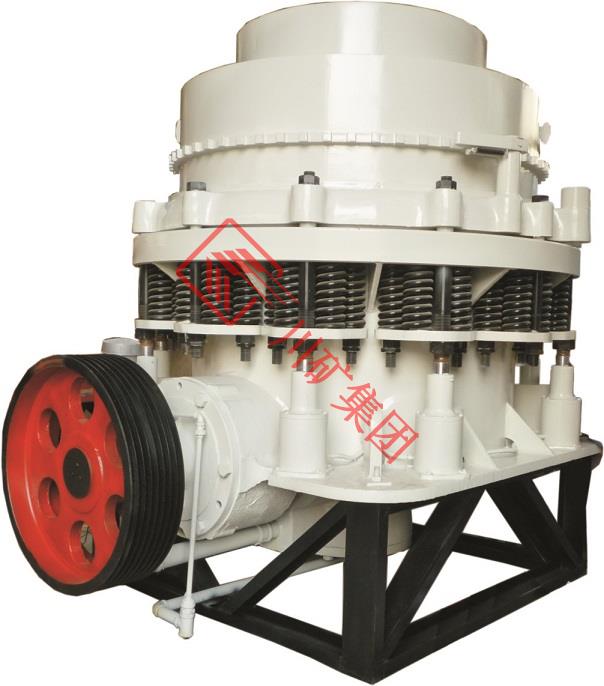

Compound cone crusher
Application Field:
Quarry, mining, coalmining, dry powder mortar, concrete mixing station, power plant desulfurization, quartz sand, etc.
Suitable Material:
Pebble, granite,basalt, iron ore, limestone, quartz, diabase, iron ore, gold, copper, etc.
Product Introduction:
The high performace cone crusher introduced foreign technology according to the market demand, designed by SMMG. The structure design is reasonable, and service life is long, crushing product size is uniform, reduce cycle load. The large size crusher used a hydraulic cavity clearing system. User can choose different cavity according to different needs. Spring safety system is overload protection device, foreign body and iron pieces can go through the crushing chamber without damaging to the crusher.
The machine is divided into standard and short head type. Standard type feed size large, discharging granularity is coarse. Short head cone crushers are steep, feed size is small,conducive to the production of fine material. The standard type is generally used for coarse crushing, middle crushing, short head for middle crushing, fine crushing.
Principle of Operation:
When the composite cone crusher working, the motor drives the eccentric sleeve to rotate via the belt, a big belt wheel, transmission shaft, bevel gear, bevel gear. Crushing cone axis swining under the force of the eccentric sleeve, the surface of broken wall sometimes close to and sometimes leave the rolling mortar wall surface. Material impact, extrusion, bending and crushing, in a ring crushing cavity of the fixed cone and moving cone. After repeated extrusion, impact and bending, material crushing to the required size, discharge from the outlet.
Performance characteristics:
1. High reliability and good stability. With large diameter spindle, heavy main frame and independent of the dilute oil lubrication automatic control system, to ensure that equipment is durable, reliable operation. Hard protection device can ensure impurities through the crushing chamber, machine rapid restoration of normal operation.
2. Repair is convenient and easy to operate. All the parts are capable of dismounting from the upper or side. It use sliding bearing, compared with the rolling bearing,it not only has the bearing performance better, but also more economic, more convenient repair.
3. Low costand wide range of application. Large capacity, high reliability, convenientrepair, low operation cost. Can be used for material high hardness materialsand low hardness of coarse crushing and fine crushing work.
4. Laminated broken and good shape of discharging. Laminating crushing principle, forming material protective layer, to reduce wear, prolong the service life of the wearing parts. Products in the proportion of the cube is improved obviously,reduce flakiness gravel size and more uniform.
5. High crushing ratio, high efficiency and energy saving, crushing cavity, cavity cleaning convenient, stable performance, firm structure, convenient maintenance, low cost, good sealing performance, little flakiness content.
